Cremone Bolt - Cabinet Brass (26")
$225.00
Unit price
/
per
SKU:101-305-C3NL

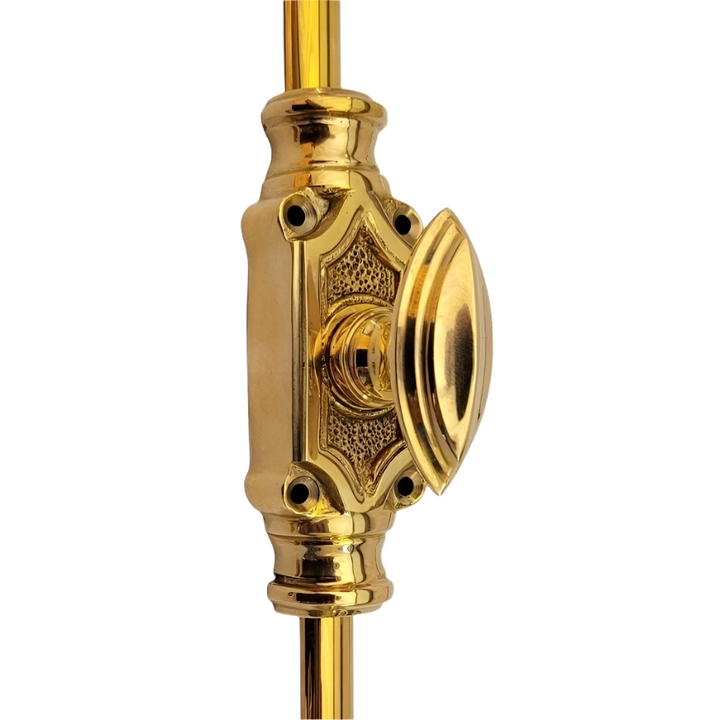

Cremones are surface-mount security bolts which are used to securely lock windows or doors. Similar in function to contemporary multi-point locks, these slide bolts lock both the top and bottom of a door/window into place by easily turning the handle. Cremones are easily installed directly onto the surface and can certainly add more character to a door, window or even larger armoires or cabinets. Rod lengths can be shortened when installing to adjust for differing door heights.
Dimensions:
• Overall (including surface catches): 28" tall x 1-1/2" wide x 2-1/16" projection
• (with 1/16" space between end-guide and catch)
• Overall (excluding surface catches): 26" tall x 1-1/2" wide x 2-1/16" projection
• Max Door Height: 26"
• Minimum Stile Width: 1-5/8" (for lock body, excluding handle operating space)
• Lock Body: 1-1/2"w x 4-1/8"h x 2-1/16"d
• Rods (each): 17/32"w x 12"h x 3/16"d
• Guide (end): 1-3/8"w x 1-1/2"h x 1/2"d
• Catch (surface mount) : 1-7/16"w x 1"h x 1/2"d
• Catch (recess mount): 1-1/2" x 9/16"
Material: cast brass
Includes: handle, 2 rods, 2 guides, 4 catches, and screws
Other: sold and priced individually
For a taller cabinet cremone option, please see this tall version.
Custom lengths and finishes available, including live/organic finishes which will develop a natural patina over time (priced upon request).
Please contact us for current availability (prices subject to change).
