Entrance Mortise Lock
$325.00
Unit price
/
per
SKU:AM500-KK-64MM-C4
Dimensions:
• Faceplate: 1-1/4"w x 8"h
• Body: 13/16"w x 5-5/8"h x 3-3/4"d
• Strike Plate: 1-1/4"w x 4-7/8"h
• Nose Bolt: 5/8" projection
• Faceplate (adjustable bevel): can be angled up to 3° in either direction
• Cylinder to Thumb Turn: 2-1/4"cc
• Cylinder to Thumb-Grip Handle: 5-5/8"cc
• Cylinder to Doorknob Cam: 3-7/16"cc
• Spindle Size: accepts 7mm and 8mm spindles
Backset: 2-1/2" (64mm) or 2-3/4" (70mm) - please specify
Handing: left/right inswing/outswing - please specify (reversible on-site)

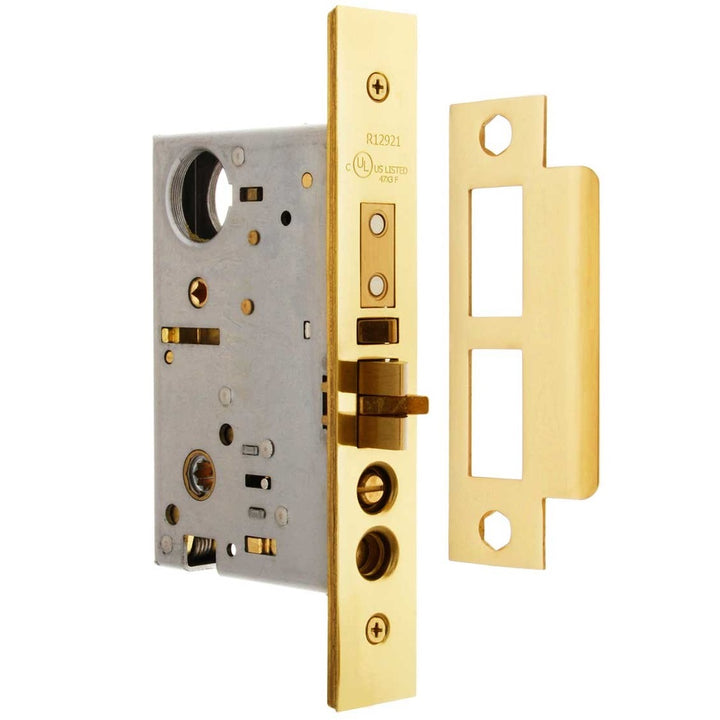

Includes: mortise lock, strike plate with dust box, and screws (additional parts sold separately, such as mortise cylinders).
Custom finishes available, including live/organic finishes which will develop a natural patina over time (priced upon request).
Please contact us for current availability (prices subject to change).
